JLH多功能系列适用于油田系统,起截止、调节、止回用。L/J系列适用于油田高压注水系统,起截止、调节流量用。特别适用于配水间高压节流注水系统。

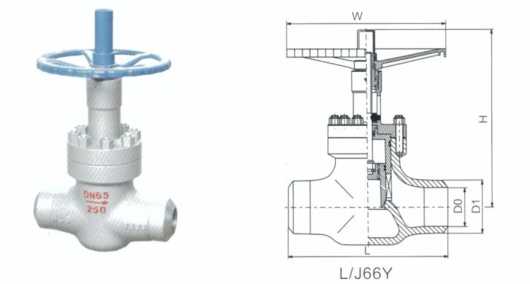

公称压力 | 公称通径 | 外形尺寸(mm) | ||||
PN(MPa) | DN(mm) | L | DO | D1 | H | W |
16 20 |
25 | 216 | 23 | 42 | 300 | 200 |
32 | 229 | 29 | 54 | 325 | 240 | |
40 | 241 | 36 | 60 | 355 | 240 | |
50 | 280 | 45 | 73 | 395 | 300 | |
65 | 330 | 58 | 89 | 425 | 320 | |
80 | 368 | 72 | 108 | 460 | 360 | |
100 | 457 | 90 | 133 | 508 | 400 | |
125 | 533 | 115 | 152 | 530 | 500 | |
150 | 610 | 135 | 194 | 650 | 550 | |
200 | 660 | 180 | 245 | 690 | 600 | |
25 35 45 |
25 | 216 | 23 | 42 | 300 | 200 |
32 | 229 | 29 | 54 | 325 | 240 | |
40 | 241 | 36 | 60 | 355 | 240 | |
50 | 280 | 45 | 73 | 395 | 300 | |
65 | 300 | 58 | 89 | 425 | 320 | |
80 | 381 | 72 | 108 | 460 | 360 | |
100 | 457 | 90 | 133 | 508 | 400 | |
125 | 633 | 115 | 152 | 530 | 500 | |
150 | 610 | 135 | 194 | 650 | 550 |

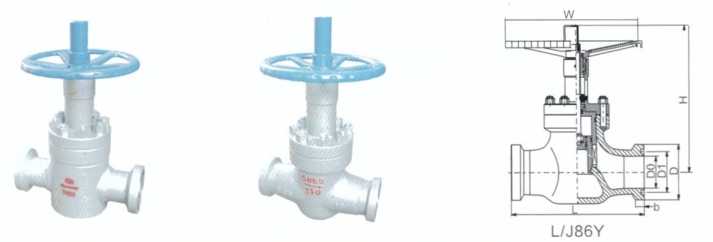

公称压力 PN(MPa) | 公称通径 DN(mm) | 外形尺寸(mm) | |||||||
L | L1 | H | DO | D1 | D | b | W | ||
16 20 |
40 | 240 | 370 | 355 | 36 | 88.8 | 120 | 20 | 280 |
50 | 280 | 432 | 395 | 45 | 88.8 | 120 | 20 | 300 | |
65 | 330 | 490 | 425 | 58 | 88.8 | 120 | 20 | 360 | |
80 | 368 | 568 | 460 | 72 | 107.8 | 140 | 20 | 400 | |
25 35 45 |
40 | 240 | 370 | 355 | 36 | 88.8 | 120 | 20 | 280 |
50 | 280 | 432 | 395 | 45 | 88.8 | 120 | 20 | 300 | |
65 | 330 | 490 | 425 | 58 | 88.8 | 120 | 20 | 360 | |
80 | 381 | 581 | 460 | 72 | 107.8 | 140 | 20 | 400 |
注:L1=L+对焊箍头

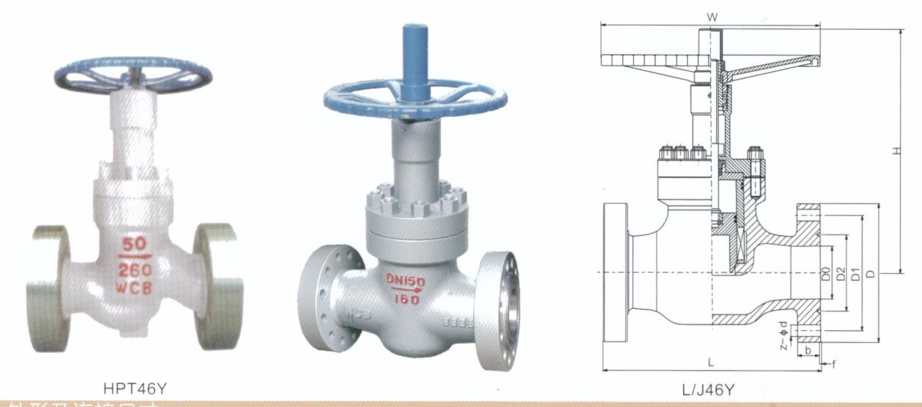

公称压力 PN(MPa) |
公称通径 DN(mm) |
外形尺寸(mm) | ||||||||
L | H | DO | D2 | D1 | D | b | Z-∅d | W | ||
16 20 |
25 | 230 | 200 | 22 | 50.8 | 101.5 | 150 | 35.4 | 4-26 | 200 |
32 | 260 | 215 | 29 | 60.32 | 111 | 160 | 35.4 | 4-26 | 220 | |
40 | 260 | 220 | 36 | 68.28 | 124 | 180 | 38.4 | 4-30 | 280 | |
50 | 300 | 230 | 45 | 95.25 | 165 | 215 | 46.5 | 8-26 | 300 | |
65 | 340 | 250 | 58 | 107.95 | 190.5 | 245 | 49.5 | 8-26 | 350 | |
80 | 380 | 340 | 72 | 123.82 | 190.5 | 240 | 46.5 | 8-30 | 360 | |
100 | 430 | 375 | 90 | 149.22 | 235 | 295 | 52.5 | 8-33 | 400 | |
150 | 500 | 530 | 135 | 211.12 | 317.5 | 380 | 64 | 12-33 | 600 | |
200 | 660 | 720 | 180 | 269.88 | 393.4 | 460 | 71.5 | 12-39 | 650 | |
25 35 45 |
25 | 230 | 200 | 22 | 50.8 | 101.5 | 150 | 35.4 | 4-26 | 200 |
32 | 260 | 215 | 29 | 60.32 | 111 | 160 | 35.4 | 4-26 | 220 | |
40 | 260 | 220 | 36 | 68.28 | 124 | 180 | 38.4 | 4-30 | 280 | |
50 | 300 | 230 | 45 | 95.25 | 165 | 215 | 46.5 | 8-26 | 300 | |
65 | 340 | 250 | 58 | .107.95 | 190.5 | 245 | 49.5 | 8-30 | 350 | |
80 | 380 | 340 | 72 | 136.52 | 203 | 265 | 56 | 8-33 | 360 | |
100 | 430 | 375 | 90 | 161.92 | 241.5 | 310 | 62 | 8-36 | 400 | |
150 | 500 | 530 | 135 | 211.12 | 317.5 | 395 | 91 | 12 - 39 | 600 | |
200 | 660 | 720 | 180 | 279.4 | 438 | 550 | 103.2 | 12-56 | 650 |

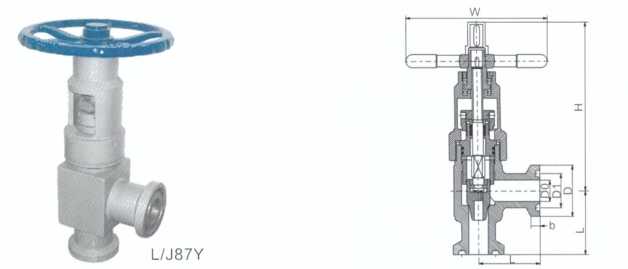

公称压力 PN(MPa) |
公称遇径 DN(mm) |
外形尺寸(mm) | |||||||
L | L1 | H | DO | D1 | D | b | W | ||
16 20 |
40 | 121 | 281 | 340 | 36 | 88.8 | 120 | 20 | 280 |
50 | 140 | 300 | 380 | 45 | 88.8 | 120 | 20 | 300 | |
65 | 165 | 325 | 395 | 58 | 88.8 | 120 | 20 | 360 | |
80 | 184 | 374 | 475 | 72 | 107.8 | 140 | 20 | 400 | |
25 35 45 |
40 | 121 | 281 | 340 | 36 | 88.8 | 120 | 20 | 280 |
50 | 140 | 300 | 380 | 45 | 88.8 | 120 | 20 | 300 | |
65 | 165 | 325 | 395 | 58 | 88.8 | 120 | 20 | 360 | |
80 | 184 | 374 | 475 | 72 | 107.8 | 140 | 20 | 400 |

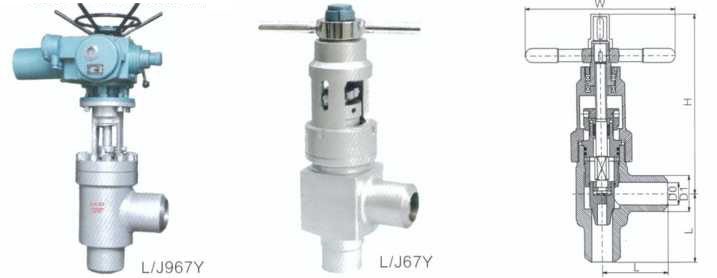

公称压力 PNCMPa) |
公称通径 DN(mm) |
外形尺寸(mm) | ||||
L | H | DO | D1 | W | ||
16 20 |
25 | 108 | 310 | 23 | 42 | 200 |
32 | 114 | 325 | 29 | 54 | 240 | |
40 | 121 | 340 | 36 | 60 | 280 | |
50 | 140 | 380 | 45 | 73 | 300 | |
65 | 165 | 395 | 58 | 89 | 360 | |
80 | 184 | 475 | 72 | 108 | 400 | |
100 | 229 | 495 | 90 | 133 | 450 | |
125 | 266 | 545 | 113 | 159 | 500 | |
150 | 305 | 575 | 135 | 192 | 550 | |
25 35 45 |
25 | 108 | 31CT | 23 | 42 | 200 |
32 | 114 | 325 | 29 | 54 | 240 | |
40 | 121 | 340 | 36 | 60 | 280 | |
50 | 140 | 380 | 45 | 73 | 300 | |
65 | 165 | 395 | 58 | 89 | 360 | |
80 | 184 | 475 | 72 | 108 | 400 | |
100 | 229 | 495 | 90 | 133 | 450 | |
125 | 266 | 545 | 113 | 159 | 500 | |
150 | 305 | 575 | 135 | 192 | 550 |
